Curved (Bow) Rollers for Effective Wrinkle Removal

DJH Machinery offers a comprehensive variety of Curved Rollers, often referred to as bow rollers, meticulously designed to effectively eliminate wrinkles and ensure optimal web spreading. Our selection includes durable Rubber-faced Curved Roller options for general use, hard-wearing Chrome-plated Steel Curved Roller for abrasive materials, and lightweight Aluminum Alloy Curved Roller for high-speed applications. For maximum versatility, our Adjustable Crown Roller (adjustable bow roller) allows for precise fine-tuning of the spreading effect to match specific material and process requirements.

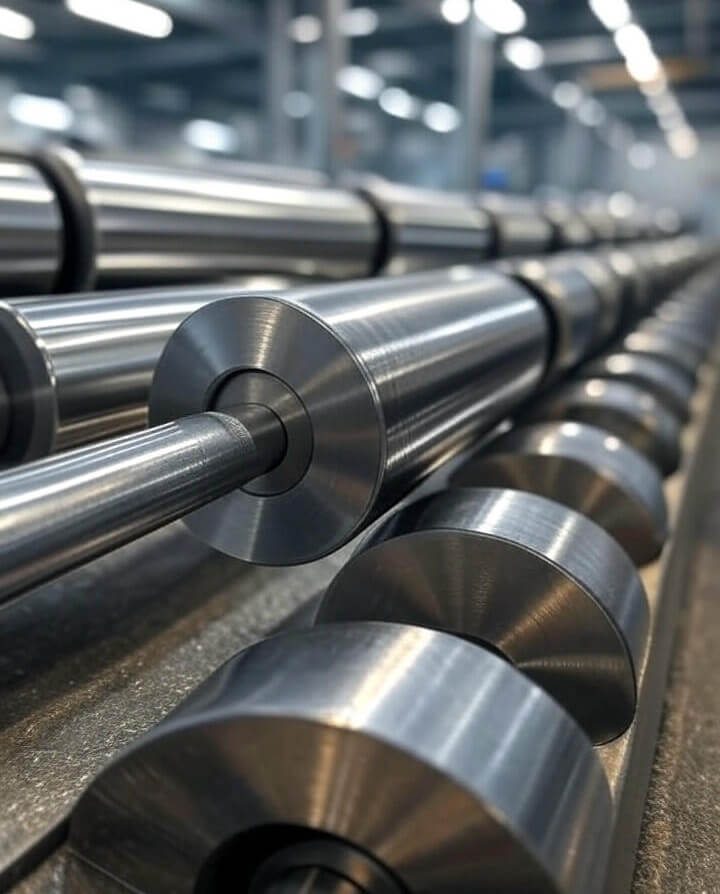

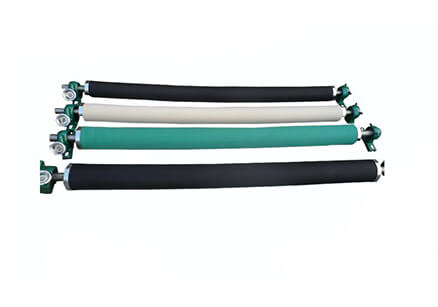

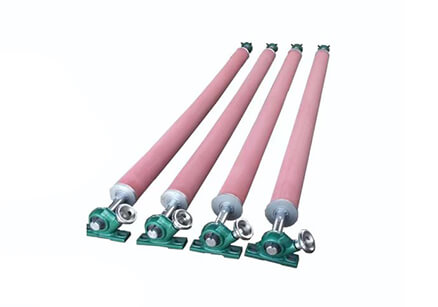

Featured Curved (Bow) Rollers

Product Specifications – Curved (Bow) Rollers
Model	Roller Face Diameter (mm)	Maximum Overall Length (mm)
R80	80	1000
R100	100	2000
R125	125	3000
R150	150	4000
R180	180	5000
R200	200	6000

Efficient Web Handling with Precision Curved (Bow) Rollers

DJH’s curved rubber rollers are engineered to enhance web stability, eliminate wrinkles, and improve material separation across coating, printing, and slitting lines. Designed for diverse substrates like paper, film, foil, textiles, and nonwovens, they ensure reliable tension control and smooth processing.

Universal Web Spreading

Expands the web evenly to eliminate slack edges and stabilize tension—critical before coating, printing, or slitting. Benefit: Delivers a flat, stable web and reduces process defects.

Wrinkle Removal for Various Materials

Effectively removes wrinkles, folds, and creases from paper, plastic films, textiles, foil, and nonwoven substrates. Benefit: Enhances product quality and reduces material waste.

Separation After Slitting

Curved rollers guide and separate slit webs to avoid interleaving and tangling during rewinding. Benefit: Ensures clean, independent roll formation and higher productivity.

Correcting Web Camber or Distortion

Adjustable crown designs gently realign distorted or cambered webs by applying differential tension. Benefit: Improves web alignment and supports consistent downstream processing.

Precision Engineered for Web Control: Inside Curved (Bow) Roller Design

1. Precision-Curved Core Geometry

Each bow roller begins with a precisely calculated arc, engineered into a carbon steel or aluminum shaft to match the web width and tension profile. This pre-bent core is essential for generating the spreading force required for wrinkle elimination and web alignment.

2. Stress-Free Rubber or Metal Covering

The roller surface—typically rubber-coated or stainless steel—is applied using techniques that ensure uniform curvature and surface tension. This prevents material distortion and ensures optimal web contact.

3. Smooth, Calibrated Finishing

Post-covering, each curved roller undergoes CNC machining, dynamic balancing, and surface polishing to achieve low runout and consistent contact pressure across the web. Ideal for delicate films, foils, and nonwovens.

4. Function-Oriented Material Pairing

Bow rollers combine flexible rubber or corrosion-resistant stainless steel surfaces with strong yet lightweight cores. This pairing enhances wrinkle removal, web spreading, and material stability without adding unnecessary weight.

5. Versatile Performance in Web Processing

Curved rollers are indispensable in coating, printing, laminating, and slitting lines—anywhere wrinkle elimination, camber correction, or slit web separation is needed. Their adaptive structure supports high-speed, high-precision operations.

Get Your Free Sample Today

Interested in the wrinkle-removing performance and web-handling precision of our Curved (Bow) Rollers? We’re happy to offer free samples customized to your specific application! Just share your web material type, width, tension requirements, and process conditions—we’ll confirm the ideal sample specs with you right away. Contact us anytime to request your free Curved Roller sample.

What Are Curved (Bow) Rollers?

Curved rollers are specialized cylindrical components with a subtle, intentional curvature along their length. This bow-shaped design enables them to spread web materials—such as paper, fabric, or plastic films—laterally as they pass over the roller, effectively smoothing out wrinkles and maintaining consistent tension.

The operational principle of curved rollers relies on their geometry: the bowed profile creates varying path lengths across the roller’s surface, with the center path being longer than the edges. This differential stretches the material outward, correcting distortions and ensuring uniform processing.

Different Types and Specifications of Curved Rollers

Fixed Bow Rollers

These have a permanent curvature, ideal for consistent, predictable web handling tasks. Bow heights typically range from 0.5% to 2% of the roller’s width.

Variable Bow Rollers

Featuring adjustable curvature, these rollers adapt to changing material properties or process conditions, offering versatility.

Sectional Bow Rollers

Composed of multiple segments, these allow for differential rotation, suited for wide or uneven webs.

Coated Bow Rollers

With surfaces like rubber or silicone, these enhance traction for slippery materials.

Industrial Applications Across Various Sectors

Curved rollers have become indispensable components in modern manufacturing, serving a diverse array of industries where precise material handling and processing are critical. Their unique design allows for superior web tension control, wrinkle elimination, and uniform material distribution, making them essential for high-quality production across multiple sectors.

Paper Manufacturing

In the paper industry, curved rollers play a pivotal role throughout the entire production process. During pulp processing, these specialized rollers prevent the formation of wrinkles and creases that could compromise paper quality and cause costly production interruptions. In printing operations, curved rollers ensure consistent ink distribution and prevent web buckling, which is crucial for maintaining print registration and avoiding costly reprints. The rollers' ability to maintain uniform pressure distribution across the web width is particularly valuable in high-speed paper mills where even minor irregularities can cascade into significant quality issues.

Textiles Industry

The textile sector relies heavily on curved rollers to maintain fabric integrity and appearance throughout various manufacturing stages. In weaving operations, these rollers ensure proper warp tension distribution, preventing uneven fabric construction that could lead to defects in the finished product. During dyeing processes, curved rollers facilitate uniform chemical penetration by maintaining consistent fabric tension and preventing the formation of dye streaks or color variations.

Film Production

In plastic and metal film extrusion processes, curved rollers are essential for maintaining consistent film thickness and surface quality. These rollers eliminate wrinkles and air entrapment that could create weak points or optical defects in the finished film. For thin-gauge applications, such as food packaging films or electronic component substrates, the precision offered by curved rollers is critical for meeting stringent thickness tolerances and surface smoothness requirements.

Supplier Selection and Investment Considerations

Choosing the optimal supplier for curved rollers is a strategic decision that directly influences production efficiency, product quality, and operational profitability across web-handling applications.

Manufacturing Excellence Assessment

Evaluate potential suppliers based on their precision manufacturing capabilities, particularly their expertise in crown profiling and surface finishing technologies. Suppliers equipped with advanced grinding and polishing equipment, along with comprehensive metrology systems, consistently deliver curved rollers with superior dimensional accuracy and surface quality. Production capacity analysis should encompass their ability to handle varying order volumes while maintaining consistent quality standards. Facilities with dedicated curved roller manufacturing lines and specialized tooling demonstrate commitment to this product category.

Technical Competency Evaluation

Assess suppliers' engineering depth in curved roller design principles, including crown calculation methodologies, deflection compensation techniques, and thermal expansion considerations. Suppliers with experienced application engineers who understand web handling dynamics can provide invaluable guidance in roller selection and system optimization. Their problem-solving capabilities should include finite element analysis tools and practical troubleshooting experience across diverse industrial applications.

Quality Assurance Standards

Priority should be given to suppliers maintaining relevant quality certifications such as ISO 9001 for general manufacturing excellence, with additional industry-specific certifications for specialized applications. For food packaging applications, BRC or SQF certifications may be essential. Aerospace applications might require AS9100 compliance. The supplier's quality control procedures should include crown profile verification, surface roughness measurement, and dynamic balancing protocols.

Design Flexibility and Innovation

Modern curved roller applications often demand specialized solutions beyond standard offerings. Evaluate suppliers' capabilities in computational modeling for crown optimization, including their ability to account for specific web materials, line speeds, and environmental conditions. Advanced suppliers utilize sophisticated simulation software to predict roller performance under various operating scenarios, enabling optimized designs before manufacturing.

Rapid Prototyping and Testing

Suppliers with in-house prototyping capabilities can accelerate product development cycles and reduce time-to-market for critical applications. Look for facilities equipped with additive manufacturing for concept validation and pilot-scale testing capabilities. The ability to perform web handling trials with prototype rollers provides valuable validation before full-scale production.

Material Science Expertise

Curved roller performance heavily depends on material selection and surface treatments. Suppliers with metallurgical expertise and coating capabilities can optimize roller compositions for specific applications. This includes knowledge of thermal treatments, chrome plating processes, ceramic coatings, and specialized surface textures that enhance web handling performance.

Our Manufacturing Prowess & R&D Capabilities

Production Scale & Qualifications

R&D and Innovation

Quality Certifications

Unmatched After-Sales Service & Support

We have a growing network of overseas service points and authorized agents in Southeast Asia, Europe, and the Americas to ensure prompt local support for your slitting and rewinding machine.
